Inline Torque Screwdriver

The EA-BN412LH/CE6, is an electric torque screwdriver (torque range of  1.3 – 10.42 in-lbs) with a Full Auto Shut-Off clutch and a powerful brushless motor.  Common usages are assembly applications that require exact repeatable torque control.

Key Features
  • Lever Start
  • 1.3 – 10.42 in-lb
  • RPM 1400/2000
  • ESD Safe


  • Lever start
  • Full Auto Shut-Off clutch
  • Comes with ESD Safe Housing
  • One year Warranty
  • Brushless Motor (ideal for clean-rooms)
  • ESD housing
  • Excellent combination of power and ergonomic features
  • Automatic shut-off precision clutch
  • Reverse/forward switch
  • Power source: 24 or 32 VDC
  • Torque setting: Stepless
  • Torque range: 1.3 – 10.42 in-lb (1.5 – 12 kg-cm)
  • High R.P.M: 2000
  • Low R.P.M: 1400
  • Standard Torque Deviation: +-3%
  • Weight: 1.19 lb (540g)
  • Length: 9.45″ (240mm)
  • Grip diameter: 1.4″ (36mm)
  • CE certified

Introducing the EA-BN412LH/CE6 lever-start Inline Torque Screwdriver, expertly crafted to excel in precision assembly tasks. With a torque range of 1.3 – 10.42 in-lbs and featuring an Electrostatic Discharge (ESD) housing, this tool prioritizes operator comfort. What sets it apart is the integration of a brushless motor, ensuring minimal heat generation, lower maintenance needs, and suitability for clean-room environments. The screwdriver’s versatility extends to its compatibility with a power supply, providing both low/high-speed options and an advanced power supply that unlocks a diverse range of capabilities. These capabilities include Hi/Lo speed, Slow Start, Output Signals, fastener counting, and run-down verification functionalities. This comprehensive feature set makes the EA-BN412LH/CE6 lever-start Inline Torque Screwdriver  an adaptable choice for demanding assembly fastening applications requiring precise torque control, ESD protection, or screw counting functionality. It stands out as the preferred solution for industries where precision and flexibility play a paramount role.

Does not include power supply.

Power Supply & Controllers available for the EA-BN412LH/CE6

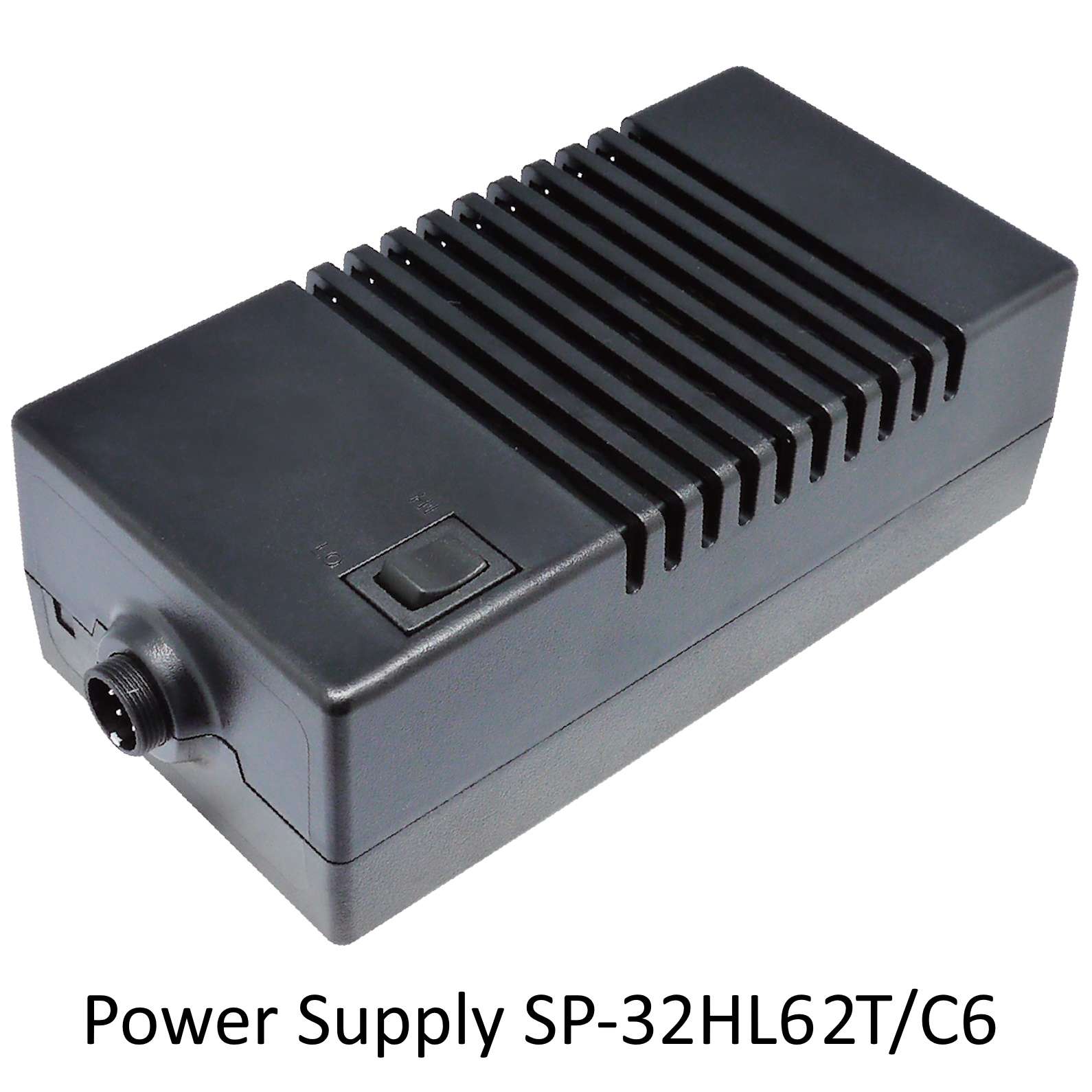

1) SP-B32HL62T/C6: Power supply that supports Hi/Low RPM.
2) SP-BC32HL101T/C6: Power Supply & Screw Counter: Power supply with Hi/Low RPM, slow start, output signals, and screw counter with run down verification functionality.


The list below is the common replacement parts. Please look at the product manual (located above) and fill out a replacement part form  if you need a part that you can not find. We will contact you with cost and delivery information.

Power Cord Assembly EPAA50001-56N

Power Cord Assembly EPAA50001-84N

Power Cord Assembly EPAA50001-139N
